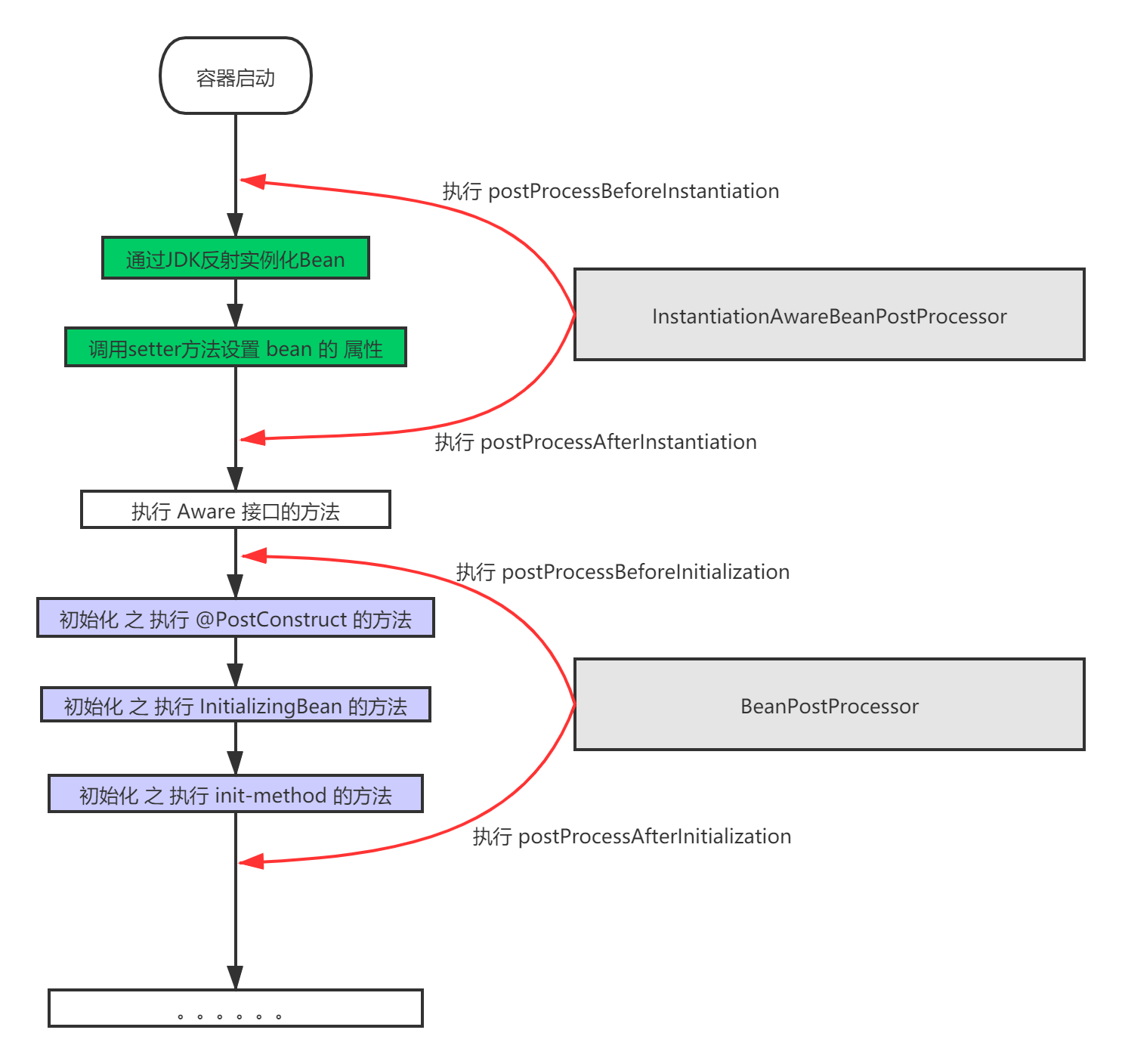

# Bean的创建过程
# step 1
ApplicationContext ctx = new AnnotationConfigApplicationContext(BeanConfig.class); // 启动容器
public AnnotationConfigApplicationContext(Class<?>... componentClasses) {
this();
register(componentClasses);
refresh(); // 刷新 容器
}
// org.springframework.context.support.AbstractApplicationContext#refresh
@Override
public void refresh() throws BeansException, IllegalStateException {
synchronized (this.startupShutdownMonitor) {
prepareRefresh();
ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory(); // 核心逻辑在于创建BeanFactory并加载BeanDefinition到BeanFactory当中
prepareBeanFactory(beanFactory);
try {
postProcessBeanFactory(beanFactory);
invokeBeanFactoryPostProcessors(beanFactory);
registerBeanPostProcessors(beanFactory);
initMessageSource();
initApplicationEventMulticaster();
onRefresh();
registerListeners();
finishBeanFactoryInitialization(beanFactory); // 实例化所有的非懒加载的单例对象到容器中
finishRefresh();
} catch (BeansException ex) {
...... // 忽略不重要代码
} finally {
...... // 忽略不重要代码
}
}
}
// org.springframework.context.support.AbstractApplicationContext#finishBeanFactoryInitialization
protected void finishBeanFactoryInitialization(ConfigurableListableBeanFactory beanFactory) {
...... // 忽略不重要代码
// Instantiate all remaining (non-lazy-init) singletons.
beanFactory.preInstantiateSingletons(); // 准备实例化 非懒加载的单例对象
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
# step 2
// org.springframework.beans.factory.support.DefaultListableBeanFactory#preInstantiateSingletons
@Override
public void preInstantiateSingletons() throws BeansException {
List<String> beanNames = new ArrayList<>(this.beanDefinitionNames);
// 遍历所有的 beanName，通过 getBean(beanName) 方法，将所有的 bean 创建一遍。
for (String beanName : beanNames) {
// 从 mergedBeanDefinitions map 中获取 BeanDefinition，获取不到再从 beanDefinitionMap 中获取。
RootBeanDefinition bd = getMergedLocalBeanDefinition(beanName);
if (!bd.isAbstract() && bd.isSingleton() && !bd.isLazyInit()) { // 非抽象、非懒加载、非单例
if (isFactoryBean(beanName)) { // 是否是 工厂bean
Object bean = getBean(FACTORY_BEAN_PREFIX + beanName);
if (bean instanceof FactoryBean) {
final FactoryBean<?> factory = (FactoryBean<?>) bean;
boolean isEagerInit;
if (System.getSecurityManager() != null && factory instanceof SmartFactoryBean) {
isEagerInit = AccessController.doPrivileged((PrivilegedAction<Boolean>) ((SmartFactoryBean<?>) factory)::isEagerInit, getAccessControlContext());
} else {
isEagerInit = (factory instanceof SmartFactoryBean && ((SmartFactoryBean<?>) factory).isEagerInit());
}
if (isEagerInit) {
getBean(beanName);
}
}
} else {
getBean(beanName); // 非工厂bean
}
}
}
// Trigger post-initialization callback for all applicable beans...
...... // 忽略不重要代码
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
# step 3
// org.springframework.beans.factory.support.AbstractBeanFactory#getBean(java.lang.String)
@Override
public Object getBean(String name) throws BeansException {
return doGetBean(name, null, null, false);
}
// org.springframework.beans.factory.support.AbstractBeanFactory#doGetBean
protected <T> T doGetBean(final String name, @Nullable final Class<T> requiredType, @Nullable final Object[] args, boolean typeCheckOnly) throws BeansException {
final String beanName = transformedBeanName(name);
Object bean;
// Eagerly check singleton cache for manually registered singletons.
Object sharedInstance = getSingleton(beanName);
if (sharedInstance != null && args == null) {
bean = getObjectForBeanInstance(sharedInstance, name, beanName, null);
} else {
// 因为 Spring 只解决单例模式下得循环依赖，在原型模式下如果存在循环依赖则会抛出异常。
if (isPrototypeCurrentlyInCreation(beanName)) {
throw new BeanCurrentlyInCreationException(beanName);
}
// Check if bean definition exists in this factory.
...... // 忽略不重要代码
if (!typeCheckOnly) {
markBeanAsCreated(beanName);
}
try {
final RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
checkMergedBeanDefinition(mbd, beanName, args);
// Guarantee initialization of beans that the current bean depends on.
// 检查 当前 bean 是否依赖其他 bean，如果依赖，先创建 依赖的 bean
String[] dependsOn = mbd.getDependsOn();
if (dependsOn != null) {
for (String dep : dependsOn) {
if (isDependent(beanName, dep)) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName, "Circular depends-on relationship between '" + beanName + "' and '" + dep + "'");
}
registerDependentBean(dep, beanName);
try {
getBean(dep);
} catch (NoSuchBeanDefinitionException ex) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName, "'" + beanName + "' depends on missing bean '" + dep + "'", ex);
}
}
}
// Create bean instance.
// 单例 bean
if (mbd.isSingleton()) {
sharedInstance = getSingleton(beanName, () -> {
try {
return createBean(beanName, mbd, args); // 核心
} catch (BeansException ex) {
...... // 忽略不重要代码
}
});
bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
}
// 原型 bean
else if (mbd.isPrototype()) {
...... // 忽略不重要代码
}
// 其他 scope bean
else {
...... // 忽略不重要代码
}
}
catch (BeansException ex) {
cleanupAfterBeanCreationFailure(beanName);
throw ex;
}
}
// Check if required type matches the type of the actual bean instance.
...... // 忽略不重要代码
return (T) bean;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
# step 4
// org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#createBean(java.lang.String, org.springframework.beans.factory.support.RootBeanDefinition, java.lang.Object[])
@Override
protected Object createBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args) throws BeanCreationException {
RootBeanDefinition mbdToUse = mbd;
...... // 忽略不重要代码
try {
// Give BeanPostProcessors a chance to return a proxy instead of the target bean instance.
Object bean = resolveBeforeInstantiation(beanName, mbdToUse); // 执行实现了 InstantiationAwareBeanPostProcessor 接口的子类的方法。
if (bean != null) {
return bean;
}
} catch (Throwable ex) {
throw new BeanCreationException(mbdToUse.getResourceDescription(), beanName, "BeanPostProcessor before instantiation of bean failed", ex);
}
try {
Object beanInstance = doCreateBean(beanName, mbdToUse, args); // 核心
return beanInstance;
} catch (BeanCreationException | ImplicitlyAppearedSingletonException ex) {
throw ex;
} catch (Throwable ex) {
throw new BeanCreationException( mbdToUse.getResourceDescription(), beanName, "Unexpected exception during bean creation", ex);
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
# step 5
// org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(String, RootBeanDefinition, Object[])
protected Object doCreateBean(final String beanName, final RootBeanDefinition mbd, final @Nullable Object[] args) throws BeanCreationException {
// Instantiate the bean.
BeanWrapper instanceWrapper = null;
if (mbd.isSingleton()) {
instanceWrapper = this.factoryBeanInstanceCache.remove(beanName);
}
if (instanceWrapper == null) {
instanceWrapper = createBeanInstance(beanName, mbd, args); // s1：创建对象
}
...... // 忽略不重要代码
// Initialize the bean instance.
Object exposedObject = bean;
try {
populateBean(beanName, mbd, instanceWrapper); // s2：调用setter方法进行赋值
exposedObject = initializeBean(beanName, exposedObject, mbd); // s3：初始化
} catch (Throwable ex) {
...... // 忽略不重要代码
}
...... // 忽略不重要代码
// Register bean as disposable.
try {
// 注册 bean 的 销毁方法
registerDisposableBeanIfNecessary(beanName, bean, mbd);
} catch (BeanDefinitionValidationException ex) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName, "Invalid destruction signature", ex);
}
return exposedObject;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
# 说明：
该方法中的核心有3步：
- instanceWrapper = createBeanInstance(beanName, mbd, args); 创建对象
- populateBean(beanName, mbd, instanceWrapper); 调用setter方法设置属性
- exposedObject = initializeBean(beanName, exposedObject, mbd); 初始化
下面详细分析
# step 5.1 createBeanInstance(beanName, mbd, args); 创建对象
// org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBeanInstance(String, RootBeanDefinition, Object[])
protected BeanWrapper createBeanInstance(String beanName, RootBeanDefinition mbd, @Nullable Object[] args) {
...... // 忽略不重要代码
// Candidate constructors for autowiring?
Constructor<?>[] ctors = determineConstructorsFromBeanPostProcessors(beanClass, beanName);
if (ctors != null || mbd.getResolvedAutowireMode() == AUTOWIRE_CONSTRUCTOR || mbd.hasConstructorArgumentValues() || !ObjectUtils.isEmpty(args)) {
return autowireConstructor(beanName, mbd, ctors, args); // 调用有参构造器创建 对象
}
// Preferred constructors for default construction?
ctors = mbd.getPreferredConstructors();
if (ctors != null) {
return autowireConstructor(beanName, mbd, ctors, null);
}
// No special handling: simply use no-arg constructor.
return instantiateBean(beanName, mbd); // 调用无参构造器创建 对象
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
# step 5.1.1 createBeanInstance(beanName, mbd, args) 创建对象 之 有参构造器
// org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.autowireConstructor(String, RootBeanDefinition, Constructor<?>[], Object[])
protected BeanWrapper autowireConstructor(String beanName, RootBeanDefinition mbd, @Nullable Constructor<?>[] ctors, @Nullable Object[] explicitArgs) {
return new ConstructorResolver(this).autowireConstructor(beanName, mbd, ctors, explicitArgs);
}
// org.springframework.beans.factory.support.ConstructorResolver.autowireConstructor(String, RootBeanDefinition, Constructor<?>[], Object[])
// org.springframework.beans.factory.support.ConstructorResolver.autowireConstructor(String, RootBeanDefinition, Constructor<?>[], Object[])
public BeanWrapper autowireConstructor(String beanName, RootBeanDefinition mbd, @Nullable Constructor<?>[] chosenCtors, @Nullable Object[] explicitArgs) {
// 封装 constructorToUse 和 argsToUse
BeanWrapperImpl bw = new BeanWrapperImpl();
this.beanFactory.initBeanWrapper(bw);
Constructor<?> constructorToUse = null;
ArgumentsHolder argsHolderToUse = null;
Object[] argsToUse = null;
...... // 忽略不重要代码
Assert.state(argsToUse != null, "Unresolved constructor arguments");
bw.setBeanInstance(instantiate(beanName, mbd, constructorToUse, argsToUse));
return bw;
}
// org.springframework.beans.factory.support.ConstructorResolver.instantiate(String, RootBeanDefinition, Constructor<?>, Object[])
private Object instantiate(String beanName, RootBeanDefinition mbd, Constructor<?> constructorToUse, Object[] argsToUse) {

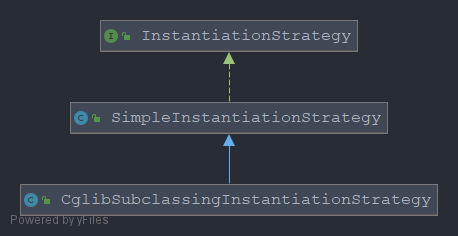

// 获取bean的实例化策略进行实例化
try {
InstantiationStrategy strategy = this.beanFactory.getInstantiationStrategy(); // 默认是 CglibSubclassingInstantiationStrategy
if (System.getSecurityManager() != null) {
return AccessController.doPrivileged((PrivilegedAction<Object>) () ->
strategy.instantiate(mbd, beanName, this.beanFactory, constructorToUse, argsToUse),
this.beanFactory.getAccessControlContext());
} else {
return strategy.instantiate(mbd, beanName, this.beanFactory, constructorToUse, argsToUse); // INTO
}
} catch (Throwable ex) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName, "Bean instantiation via constructor failed", ex);
}
}
// org.springframework.beans.factory.support.SimpleInstantiationStrategy.instantiate(RootBeanDefinition, String, BeanFactory, Constructor<?>, Object...)
public Object instantiate(RootBeanDefinition bd, @Nullable String beanName, BeanFactory owner, final Constructor<?> ctor, Object... args) {
if (!bd.hasMethodOverrides()) {
...... // 忽略不重要代码
return BeanUtils.instantiateClass(ctor, args); // INTO 截至到此处，有参构造器和参数已经拿到。其余实例化的工作交给 BeanUtils 处理。
} else {
return instantiateWithMethodInjection(bd, beanName, owner, ctor, args);
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
# step 5.1.2 createBeanInstance(beanName, mbd, args) 创建对象 之 无参构造器
// org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.instantiateBean(String, RootBeanDefinition)
protected BeanWrapper instantiateBean(final String beanName, final RootBeanDefinition mbd) {
// 获取bean的实例化策略进行实例化
try {
Object beanInstance;
final BeanFactory parent = this;
if (System.getSecurityManager() != null) {
beanInstance = AccessController.doPrivileged((PrivilegedAction<Object>) () ->
getInstantiationStrategy().instantiate(mbd, beanName, parent),
getAccessControlContext());
} else {
beanInstance = getInstantiationStrategy().instantiate(mbd, beanName, parent);
}
BeanWrapper bw = new BeanWrapperImpl(beanInstance);
initBeanWrapper(bw);
return bw;
} catch (Throwable ex) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName, "Instantiation of bean failed", ex);
}
}
// org.springframework.beans.factory.support.SimpleInstantiationStrategy.instantiate(RootBeanDefinition, String, BeanFactory)
public Object instantiate(RootBeanDefinition bd, @Nullable String beanName, BeanFactory owner) {
// Don't override the class with CGLIB if no overrides.
if (!bd.hasMethodOverrides()) {
...... // 忽略不重要代码
return BeanUtils.instantiateClass(constructorToUse); // BeanUtils line 171
}
else {
// Must generate CGLIB subclass.
return instantiateWithMethodInjection(bd, beanName, owner);
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
# step 5.1.3 createBeanInstance(beanName, mbd, args) 创建对象 之 BeanUtils.instantiateClass(ctor, args);
// org.springframework.beans.BeanUtils.instantiateClass(Constructor<T>, Object...)
public static <T> T instantiateClass(Constructor<T> ctor, Object... args) throws BeanInstantiationException {
Assert.notNull(ctor, "Constructor must not be null");
...... // 忽略不重要代码
Object[] argsWithDefaultValues = new Object[args.length];
for (int i = 0; i < args.length; i++) {
if (args[i] == null) {
Class<?> parameterType = parameterTypes[i];
argsWithDefaultValues[i] = (parameterType.isPrimitive() ? DEFAULT_TYPE_VALUES.get(parameterType) : null);
} else {
argsWithDefaultValues[i] = args[i];
}
}
// 通过JDK的反射 创建对象。--- leichu
return ctor.newInstance(argsWithDefaultValues);
...... // 忽略不重要代码
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
# step 5.2 populateBean(beanName, mbd, instanceWrapper); 调用setter方法设置属性
// org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#populateBean(String beanName, RootBeanDefinition mbd, @Nullable BeanWrapper bw)
protected void populateBean(String beanName, RootBeanDefinition mbd, @Nullable BeanWrapper bw) {
...... // 忽略不重要代码
if (pvs != null) {
applyPropertyValues(beanName, mbd, bw, pvs); // INTO
}
}
// org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#applyPropertyValues(String beanName, BeanDefinition mbd, BeanWrapper bw, PropertyValues pvs)
protected void applyPropertyValues(String beanName, BeanDefinition mbd, BeanWrapper bw, PropertyValues pvs) {
...... // 忽略不重要代码
// Set our (possibly massaged) deep copy.
try {
bw.setPropertyValues(new MutablePropertyValues(deepCopy));
}
catch (BeansException ex) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName, "Error setting property values", ex);
}
}
// org.springframework.beans.AbstractPropertyAccessor#setPropertyValues(org.springframework.beans.PropertyValues)
public void setPropertyValues(PropertyValues pvs) throws BeansException {
setPropertyValues(pvs, false, false);
}
// org.springframework.beans.AbstractPropertyAccessor#setPropertyValues(org.springframework.beans.PropertyValues, boolean, boolean)
public void setPropertyValues(PropertyValues pvs, boolean ignoreUnknown, boolean ignoreInvalid) throws BeansException {
List<PropertyAccessException> propertyAccessExceptions = null;
List<PropertyValue> propertyValues = (pvs instanceof MutablePropertyValues ? ((MutablePropertyValues) pvs).getPropertyValueList() : Arrays.asList(pvs.getPropertyValues()));
for (PropertyValue pv : propertyValues) {
try {
// 循环设置 属性和值
setPropertyValue(pv);
}
}
...... // 忽略不重要代码
}
// org.springframework.beans.AbstractNestablePropertyAccessor#setPropertyValue(org.springframework.beans.PropertyValue)
public void setPropertyValue(PropertyValue pv) throws BeansException {
PropertyTokenHolder tokens = (PropertyTokenHolder) pv.resolvedTokens;
if (tokens == null) {
...... // 忽略不重要代码
nestedPa.setPropertyValue(tokens, pv); // INTO
}
else {
setPropertyValue(tokens, pv);
}
}
// org.springframework.beans.AbstractNestablePropertyAccessor#setPropertyValue(org.springframework.beans.AbstractNestablePropertyAccessor.PropertyTokenHolder, org.springframework.beans.PropertyValue)
protected void setPropertyValue(PropertyTokenHolder tokens, PropertyValue pv) throws BeansException {
if (tokens.keys != null) {
processKeyedProperty(tokens, pv);
}
else {
processLocalProperty(tokens, pv);
}
}
// org.springframework.beans.AbstractNestablePropertyAccessor#processLocalProperty(PropertyTokenHolder tokens, PropertyValue pv)
private void processLocalProperty(PropertyTokenHolder tokens, PropertyValue pv) {
PropertyHandler ph = getLocalPropertyHandler(tokens.actualName); // BeanWrapperImpl$BeanPropertyHandler
...... // 忽略不重要代码
Object oldValue = null;
try {
Object originalValue = pv.getValue();
Object valueToApply = originalValue;
...... // 忽略不重要代码
ph.setValue(valueToApply);
}
...... // 忽略不重要代码
}
// org.springframework.beans.BeanWrapperImpl.BeanPropertyHandler#setValue(final @Nullable Object value)
public void setValue(final @Nullable Object value) throws Exception {
final Method writeMethod = (this.pd instanceof GenericTypeAwarePropertyDescriptor ?
((GenericTypeAwarePropertyDescriptor) this.pd).getWriteMethodForActualAccess() :
this.pd.getWriteMethod());
if (System.getSecurityManager() != null) {
...... // 忽略不重要代码
}
else {
ReflectionUtils.makeAccessible(writeMethod);
// 最终 执行setter方法，给属性赋值
writeMethod.invoke(getWrappedInstance(), value);
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
# step 5.3 initializeBean(beanName, exposedObject, mbd); 初始化
// org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#initializeBean(java.lang.String, java.lang.Object, org.springframework.beans.factory.support.RootBeanDefinition)
protected Object initializeBean(final String beanName, final Object bean, @Nullable RootBeanDefinition mbd) {
if (System.getSecurityManager() != null) {
AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
invokeAwareMethods(beanName, bean);
return null;
}, getAccessControlContext());
}
else {
invokeAwareMethods(beanName, bean); // s 5.3.1
}
Object wrappedBean = bean;
if (mbd == null || !mbd.isSynthetic()) {
wrappedBean = applyBeanPostProcessorsBeforeInitialization(wrappedBean, beanName); // s 5.3.2
}
try {
invokeInitMethods(beanName, wrappedBean, mbd); // s 5.3.3
}
catch (Throwable ex) {
throw new BeanCreationException((mbd != null ? mbd.getResourceDescription() : null), beanName, "Invocation of init method failed", ex);
}
if (mbd == null || !mbd.isSynthetic()) {
wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName); // s 5.3.4
}
return wrappedBean;
}
/**
* s 5.3.1
* org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#invokeAwareMethods(final String beanName, final Object bean)
* 执行顺序：BeanNameAware、BeanClassLoaderAware、BeanFactoryAware
*/
private void invokeAwareMethods(final String beanName, final Object bean) {
if (bean instanceof Aware) {
if (bean instanceof BeanNameAware) {
((BeanNameAware) bean).setBeanName(beanName);
}
if (bean instanceof BeanClassLoaderAware) {
ClassLoader bcl = getBeanClassLoader();
if (bcl != null) {
((BeanClassLoaderAware) bean).setBeanClassLoader(bcl);
}
}
if (bean instanceof BeanFactoryAware) {
((BeanFactoryAware) bean).setBeanFactory(AbstractAutowireCapableBeanFactory.this);
}
}
}
/**
* s 5.3.2
* org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#applyBeanPostProcessorsBeforeInitialization(Object existingBean, String beanName)
* 调用所有 后置处理器 BeanPostProcessors 的 postProcessBeforeInitialization 方法。
*/
public Object applyBeanPostProcessorsBeforeInitialization(Object existingBean, String beanName) throws BeansException {
Object result = existingBean;
for (BeanPostProcessor processor : getBeanPostProcessors()) {
Object current = processor.postProcessBeforeInitialization(result, beanName);
if (current == null) {
return result;
}
result = current;
}
return result;
}
/**
* s 5.3.3
* org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#invokeInitMethods(String beanName, final Object bean, @Nullable RootBeanDefinition mbd)
*/
protected void invokeInitMethods(String beanName, final Object bean, @Nullable RootBeanDefinition mbd) throws Throwable {
// 判断是否实现了 InitializingBean 接口
// 如果实现了 InitializingBean 接口，调用 InitializingBean 的 afterPropertiesSet 方法。
// 判断是否自定义了init-method 方法，如果有，执行 init-method 方法。
boolean isInitializingBean = (bean instanceof InitializingBean);
if (isInitializingBean && (mbd == null || !mbd.isExternallyManagedInitMethod("afterPropertiesSet"))) {
if (logger.isTraceEnabled()) {
logger.trace("Invoking afterPropertiesSet() on bean with name '" + beanName + "'");
}
if (System.getSecurityManager() != null) {
try {
AccessController.doPrivileged((PrivilegedExceptionAction<Object>) () -> {
((InitializingBean) bean).afterPropertiesSet();
return null;
}, getAccessControlContext());
}
catch (PrivilegedActionException pae) {
throw pae.getException();
}
}
else {
((InitializingBean) bean).afterPropertiesSet();
}
}
if (mbd != null && bean.getClass() != NullBean.class) {
String initMethodName = mbd.getInitMethodName();
if (StringUtils.hasLength(initMethodName) &&
!(isInitializingBean && "afterPropertiesSet".equals(initMethodName)) &&
!mbd.isExternallyManagedInitMethod(initMethodName)) {
invokeCustomInitMethod(beanName, bean, mbd);
}
}
}
/**
* s 5.3.4
* org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#applyBeanPostProcessorsAfterInitialization(Object existingBean, String beanName)
* 调用所有 后置处理器 BeanPostProcessors 的 postProcessAfterInitialization 方法。
*/
public Object applyBeanPostProcessorsAfterInitialization(Object existingBean, String beanName) throws BeansException {
Object result = existingBean;
for (BeanPostProcessor processor : getBeanPostProcessors()) {
Object current = processor.postProcessAfterInitialization(result, beanName);
if (current == null) {
return result;
}
result = current;
}
return result;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
# 总结：
# 1. bean 的创建是在 beanFactory 创建完成后进行，此时 所有的 bean 的定义 BeanDefinition 已经加载完成。
# 2. bean 的创建 又分为 实例化对象、调用setter方法赋值、初始化属性 三个阶段。
- 2.1 实例化对象过程 主要是通过 实例化策略接口 InstantiationStrategy 来进行实例化。
- 2.2 在setter方法调用之后，正式初始化之前，调用 xxxAware 接口的方法。 如：BeanNameAware 的 setBeanName 方法，BeanClassLoaderAware 的 setBeanClassLoader 方法，BeanFactoryAware 的 setBeanFactory 方法。
- 2.3 然后执行所有的后置处理器 BeanPostProcessors 的 postProcessBeforeInitialization 方法。
- 2.4 接下来正式初始化。初始化的过程就是 执行 标注了@PostConstruct 的 方法、InitializingBean 接口的 afterPropertiesSet 方法和 init-method 方法。
- 2.5 初始化之后，调用 后置处理器 BeanPostProcessors 的 postProcessAfterInitialization 方法。
# 3. BeanPostProcess 执行的几个时机
